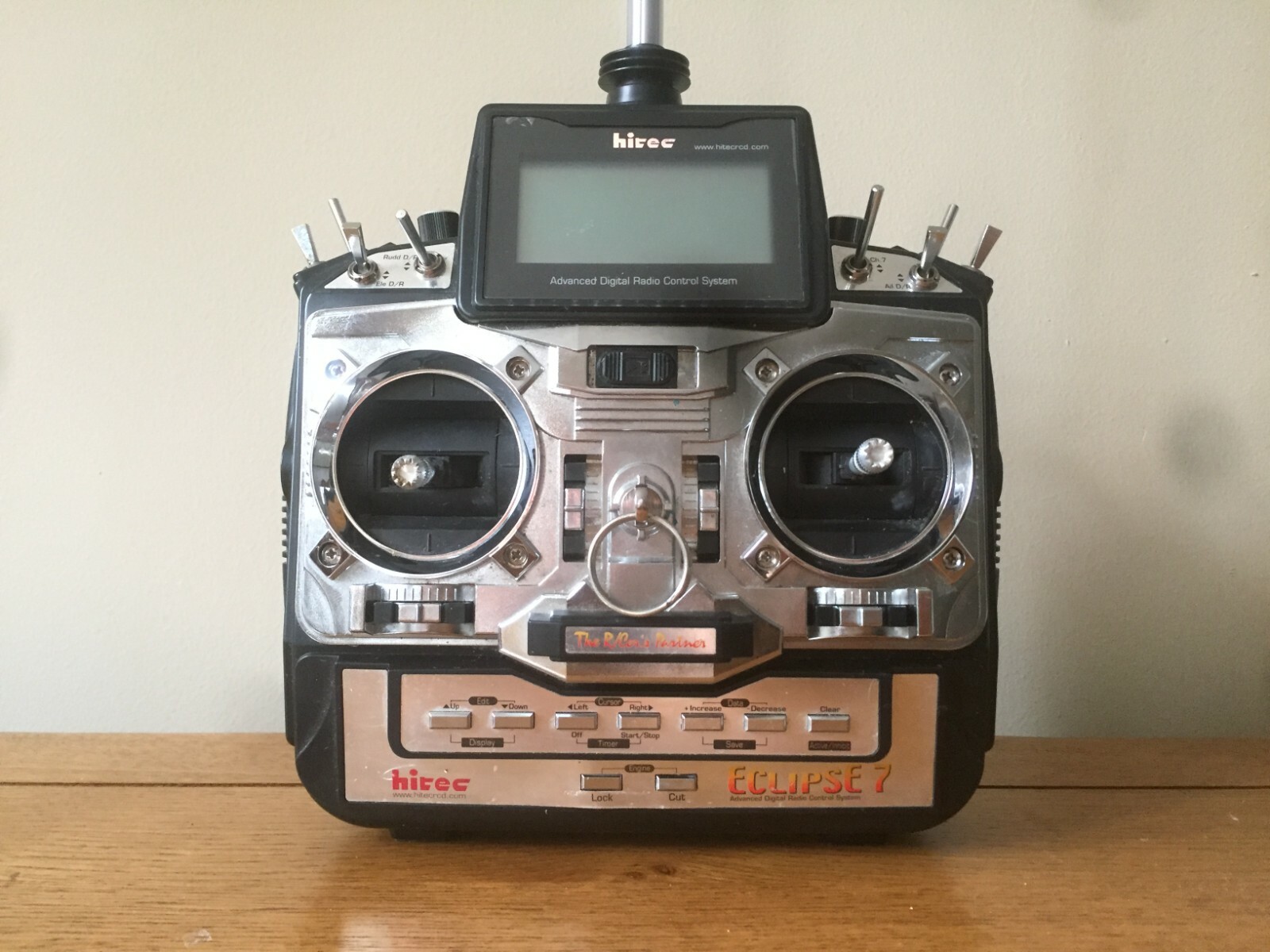

Aurora 9, Eclipse 7, Optic 6, and all future Hitec module-type transmitters - In all cases, any transmitter using the Spectra 2.4GHz module will be compatible only with Hitec’s AFHSS 2.4GHz series of receivers. Hitec Eclipse 7, Optic 6, Aurora 9 and Futaba® transmitters that use the FP-TP-FM module. You now own a Hitec Eclipse 7, an extremely versatile R/C system that may be effectively used by both beginning and master pilots. The transmitter may be programmed for airplanes, gliders, or helicopters, all with special mixing functions, so it can accommodate virtually any model configuration.

Part No: 17324X

ECLIPSE 7 PRO 2.4G 2.4GHz Radio Control System USER MANUAL Hitec RCD KOREA INC. Page 2 Congratulations and welcome to the R/C world! You now own a basic, but unusually versatile and powerful, 5-Channel beginner’s RC transmitter. The ECLIPSE 7 PRO 2.4G is all the radio you need to fly the most of 5-Channel fixed-wings aircraft models.

Product Description

We gave our fan favorite Eclipse 7 a facelift and numerous upgraded features to create the highly anticipated Eclipse 7 Pro. Offering a high intensity white backlit LCD screen, ergonomically positioned, back mounted slider knob and ultra-smooth quad ball bearing gimbals, this advanced AFHSS 2.4GHz system is your next feature-packed radio! It possesses 16-model maximum storage, intuitive control switches and an array of telemetric functions including sensor monitoring and on-board receiver low battery warning. And it doesn’t stop there. The Eclipse 7 Pro provides specific programming for fixed wing, glow,gas or electric planes, helicopters and sailplanes! Let it make you a Pro!

Features

• 7-Channel 2.4GHz Telemetric System
• 3-Model Type (ACRO/GLID/HELI) Programming
• 16-Model Memory
• Highly Sensitive 8 Ball-Bearing Gimbals
• Easy-to-Read Backlit LCD Screen
• Back Mounted Sliders for Easy Access
• Range Check Mode
• Auto-Assignable Control Switch
• Sensor Monitoring and RX Low Battery Warning
• Stick Mode Change
• Digital Trims
• 7-Character Model Naming
• Three Conditional Mixes per Model Memory
• Model Copy
• Sub Trims
• Two Flight Timers
• EPA
• 5 Programmable Mixes
• All Channel Servo Reverse
• Dual Rates on Channel 1, 2 and 4
• Exponential Rates on Channels 1, 2 and 4
• Data Reset to Defaults
• Throttle Cut Switch
• Auto Engine Cut Switch
• Engine Hold
• Trainer

Advanced Features

ACRO Programming

• Landing Mix
• Flap Trim Adjust
• Aileron-to-Rudder Mix
• Elevator-to-Flap Mix
• Flap-to-Elevator Mix
• Elevon Mix
• V-Tail Mix
• Ailevator Mix
• Flaperon Mix
• Aileron Differential
• Snap-Roll

HELI Programming

• Throttle Cut
• Rudder-to-Throttle Mix
• 2 Idle-up, 1 Throttle Hold
• 5-Point Throttle Curve
• 5-Point Pitch Curve
• Gyro Gain Adjust
• Revolution Mix
• Hovering Pitch Knob
• Hovering Throttle Knob
• Engine Lock Switch
• 4 Swash Types: 90° 120° 140° and 180°

GLIDER Programming

• 2 Servo Wing Mode
• Camber Mix
• Aileron Differential
• V-Tail Mix
• Elevator-to-Flap Mix
• Aileron-to-Rudder Mix
• Flap-to-Aileron Coupling
• Flap-to-Elevator Coupling
• Flap-to-Aileron Trim
• 4 Servo Wing Mode – Same as Above Plus:
• Crow Mix

Available Models

2.4GHz Transmitter Standard Version
Includes Eclipse 7 Pro Transmitter, Optima 7 RX, 4 x HS-5485HB Digital Servos, TX NiMH Battery & Charger
Stock# 173242

2.4GHz Transmitter with 2 x Optima 7-Channel Receivers
Includes Eclipse 7 Pro Transmitter with 2 x Optima 7-Channel Receiver, TX NiMH Battery & Charger
Stock# 173241

Adobe after effect cs2 full cracked download. 2.4GHz Transmitter with Optima 7-Channel Receiver
Includes Eclipse 7 Pro Transmitter, Optima 7 RX, TX NiMH Battery & Charger
Stock# 173240

LASER 4FM Tx, Supreme Rx, 4 x HS-322 Servos, Full Batteries & Charger
Stock# 156721

Hitec Eclipse 7 Qpcm Manual

Firmware Updates

Hitec Eclipse 7 Qpcm Manual 7

HPP-22 VERSION 1.13(0) 1/15/2013

Hitec Eclipse 7 Qpcm Manual Pdf

• ECLIPSE 7 PRO 2.4GHz ver.1.03(0) Firmware Update
  • Added Upgrade Mode and HPP-22 Mode
  • Added HTS-Advance Display
  • Model Data can save to PC and bring the Model Data from PC
  • Improved Latency
